| Delivery Period: | 5-8 working days |
| Payment Method: | T/T, Western Union, D/P, D/A, L/C, MoneyGram |

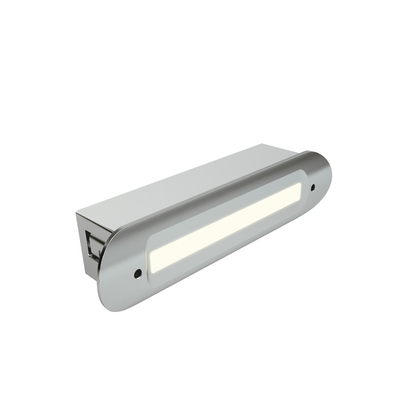

The Linear LED handrail lighting system is designed for recessed mounted into round shaped surface stainless steel or aluminum alloy handrail for under handrail lighting , IP65 rated design and offers various design possibilities in architectural illumination and provides even and pleasant light distribution suitable for both indoor and outdoor, such as villas, parks, squares, garages and residential areas and etc.
Features and benefits:
▪ Dimensions: L124*W30*H32mm.
▪ Flat front ring suitable for square handrail.
▪ Beam angle: Symmetric 10*100°;
▪ Working voltage: 24VDC
▪ Power: single color 2.5W, tunable white 5W.
▪ Light source: 1pc or 2pcs ×2.5W DS134 LUXEON ZES LED
▪ Luminous Flux: 68LM@3000K.
▪ Light color:single color, tunable white.
▪ CRI: Ra>80 (CRI90+ available).
▪ Control mode for optional: ON/OFF, or DMX512
▪ Materials: Aluminum alloy housing, PMMA diffuser.
▪ Easy recessed mounted and maintenance.
▪ Suitable for <span font-size:14px;white-space:normal;background-color:#ffffff;color:#000000;"="" style="box-sizing: border-box; list-style: none; margin: 0px; padding: 0px; font: inherit; vertical-align: baseline;">Ø48~52mm and wall thickness 0.8~3mm round handrail.
▪ Cut out: L102*W28mm.
▪ Maximum connected power no more than 100W
▪ Average life time: 30000 hours@70% lumen depreciation.
▪ IP Rate: IP65 Waterproof (don't submerse into water).
▪ Ambient Temperature: -20℃ ~ +45℃.
▪ 2 Years warranty.
Technical Parameters for IP65 Linear LED Light for LED Linear Lighting Under Handrail in Single color or Tunable white color, DMX512 for options:
| Item No. |
Control
Mode
|
Light source |
Light
Color
|
Beam
Angle
|
Input
Voltage
|
Typical
Current
(mA)
|
Typical Power
(W)
|
Typical Luminance
(LM)
|
IP
Rate
|
| S30R-01-XX | ON/OFF |
1piece×2.5W
DS134 LUXEON ZES LED
|
Single |
Symmetric:
10×100°
|
24VDC | 125mA | 2.5W | 68LM | IP65 |
| S30R-01-TW | ON/OFF |
2pcs×2.5W
DS134 LUXEON ZES LED
|
Tunable White
(3000K+4000K;
3000K+6000K)
|
Symmetric:
10×100°
|
24VDC | 210mA | 5W | 136LM | IP65 |
| S30R-01-XX-DMX | DMX512 |
1piece×2.5W
DS134 LUXEON ZES LED
|
Single |
Symmetric:
10×100°
|
24VDC | 125mA | 2.5W | 68LM | IP65 |
| S30R-01-TW-DMX | DMX512 |
2pcs×2.5W
DS134 LUXEON ZES LED
|
Tunable White
(3000K+4000K;
3000K+6000K)
|
Symmetric:
10×100°
|
24VDC | 210mA | 5W | 136LM | IP65 |
Notes:
1. Single color: 2700K, 3000K, 4000K, 5000K, 6000K, 6500K,and etc.
2. Specifications are subjected to change without notice.
|
|
